Overview
The Fujiya FVA-1630-BG is a professional electrician's cable and wire stripper designed for clean, controlled stripping of Japanese VA / VVF flat electrical cable, comparable in application to North American NM-B (Romex) residential wiring. It supports 1.6 mm and 2.0 mm solid conductor sizes (approximately 14 AWG and 12 AWG) in 2-core and 3-core configurations, making it well suited for residential electrical installation and maintenance.
Its slim, extended nose profile allows precise operation inside electrical boxes and tight wall cavities, while precisely machined stripping holes help prevent nicked conductors and uneven cuts. Built-in gauge markings and strip-length references support consistent, repeatable results. An integrated M4 screw cutting function allows outlet and switch screws to be trimmed cleanly without changing tools. Finished in the KUROKIN black oxide coating to improve durability and corrosion resistance, it features ergonomic handles for comfortable, controlled use. Manufactured under Fujiya Japan’s quality control standards and RoHS compliant.
✅ Supports 1.6 mm and 2.0 mm solid conductors (approximately 14 AWG and 12 AWG)
✅ Designed for Japanese VA / VVF flat electrical cable, comparable to North American NM-B wiring
✅ Supports 2-core and 3-core VVF cable configurations
✅ Slim nose improves access in tight electrical boxes and panels
✅ Integrated M4 screw cutter reduces tool changes during device installation
Features

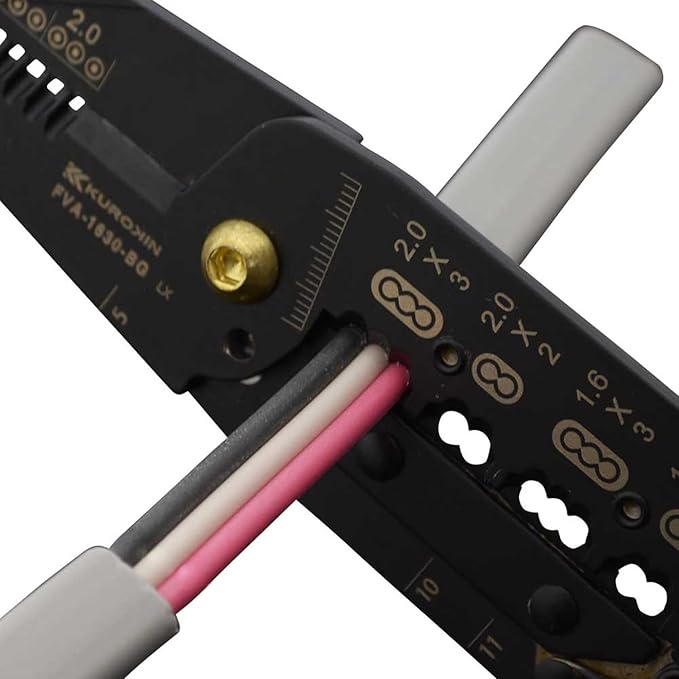

- Precision stripping holes for solid copper residential electrical wire (VA / VVF)
- Comparable in application to North American NM-B (Romex) wiring
- Supports 1.6 mm and 2.0 mm solid conductors (approximately 14 AWG and 12 AWG)
- Manufacturer-specified VVF configurations: 1.6 mm × 2-core, 1.6 mm × 3-core, 2.0 mm × 2-core, and 2.0 mm × 3-core
- Slim, elongated nose improves access inside electrical boxes

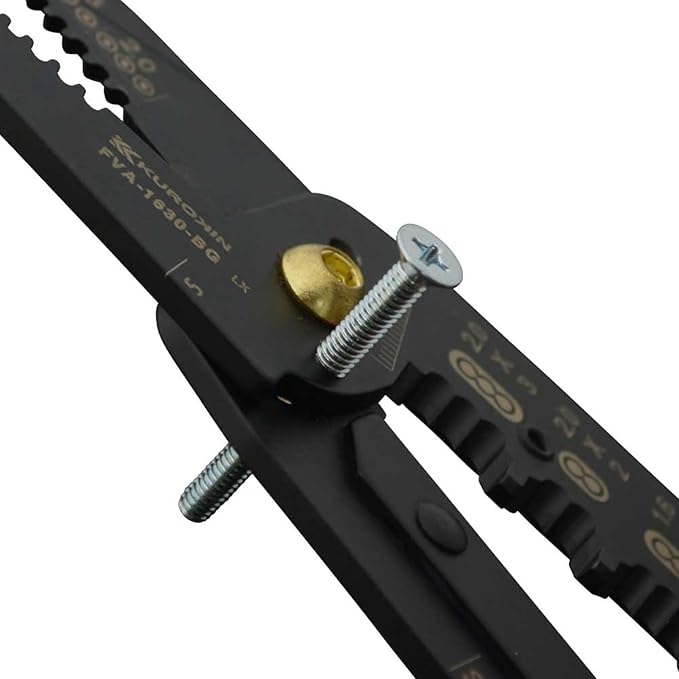

- Integrated M4 screw cutting function for outlet and switch installation

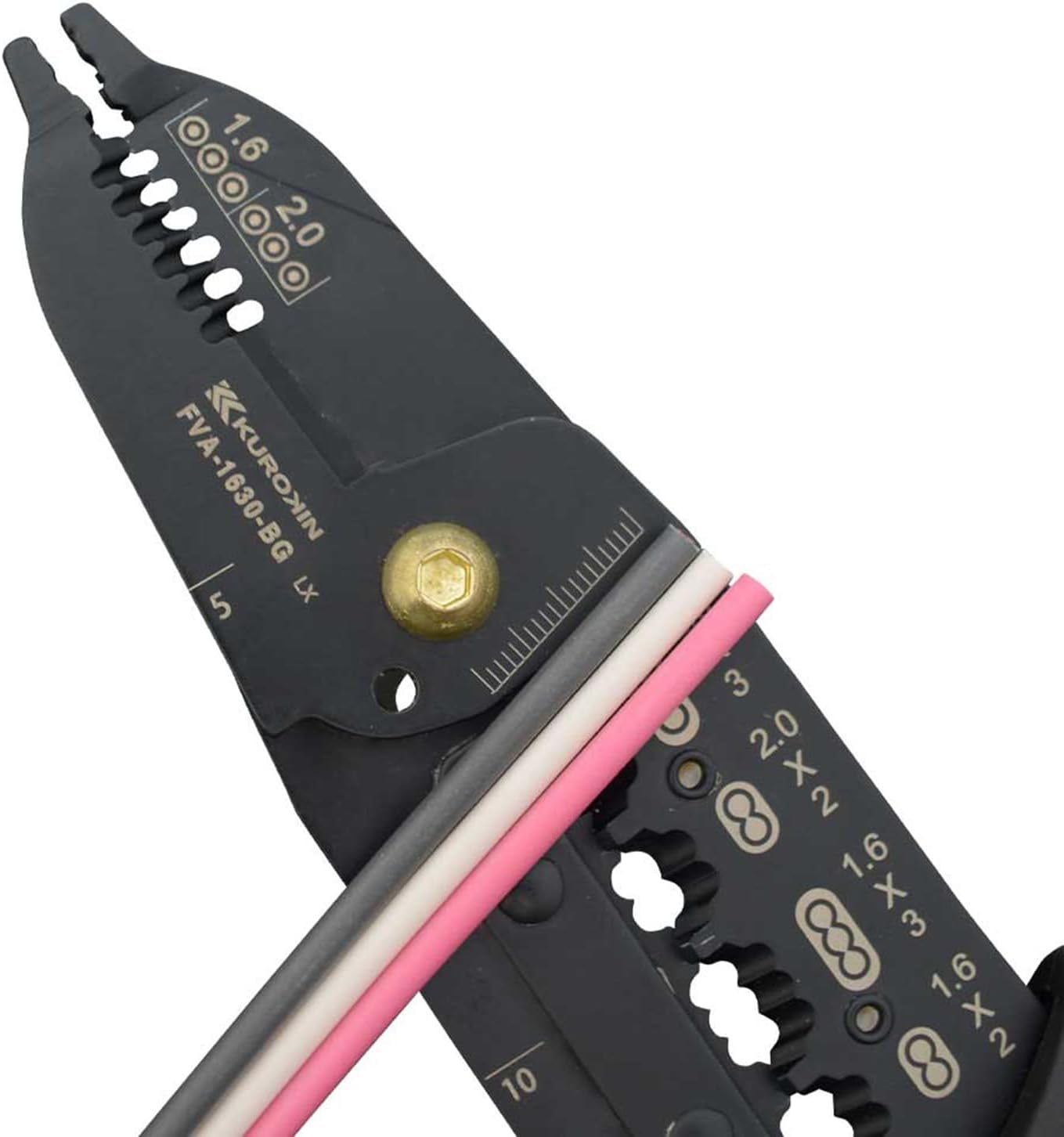

- Clear gauge markings and strip-length guides for consistent results
- Ergonomic grips provide controlled, fatigue-reduced handling
- KUROKIN black and gold finish adds corrosion resistance and durability
- Made in Taiwan under Fujiya Japan (est. 1923) quality control standards for exceptional reliability
Details
| Specification |
Detail |
| Model |
FVA-1630-BG |
| Tool Type |
Precision Wire Stripper |
| Comparable Cable (NA) |
14–12 AWG solid copper, NM-B residential cable |
| Supported Wire (JP) |
VA / VVF solid copper |
| Conductor Sizes |
1.6 mm, 2.0 mm (approx. 14 AWG, 12 AWG)
|
| Cable Configurations |
2-core / 3-core VVF (comparable to 14/2, 14/3, 12/2, 12/3 NM-B configurations)
|
| Additional Functions |
M4 screw cutting |

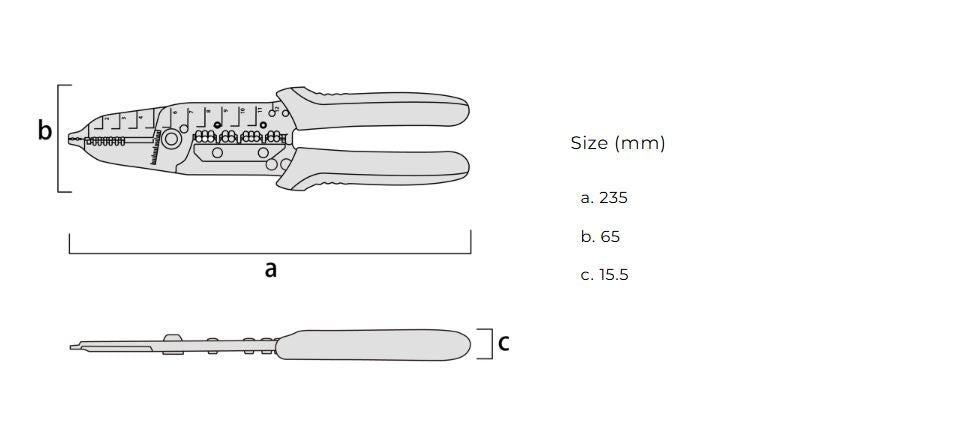

| Length |
235 mm (9.25") |
| Weight |
233 g (8.22 oz) |
| Finish |
KUROKIN Black & Gold |
| JAN Code |
4952520083505 |
| Country of Origin |
Made in Taiwan by Fujiya Japan |
Product Safety
- Always wear appropriate personal protective equipment (PPE), such as gloves and safety glasses, when using tools.
- Wear safety glasses when striking, cutting, or prying with any tool.
- Inspect each tool before use and do not operate if damaged.
- Use all tools only for their intended purpose and within their specified limits.
- Do not use on live electrical circuits unless the tool is certified to IEC 60900 / VDE 1000V and marked accordingly.
- Only tools carrying that certification are rated for work near energized conductors.
- A plastic handle, resin shaft cover, or internal insulating component is not electrical insulation and will not protect you from shock.
- Always disconnect power and verify the circuit is de-energized with a tester before working on electrical equipment.
- Store tools in a dry location and keep them out of reach of children.
