Overview

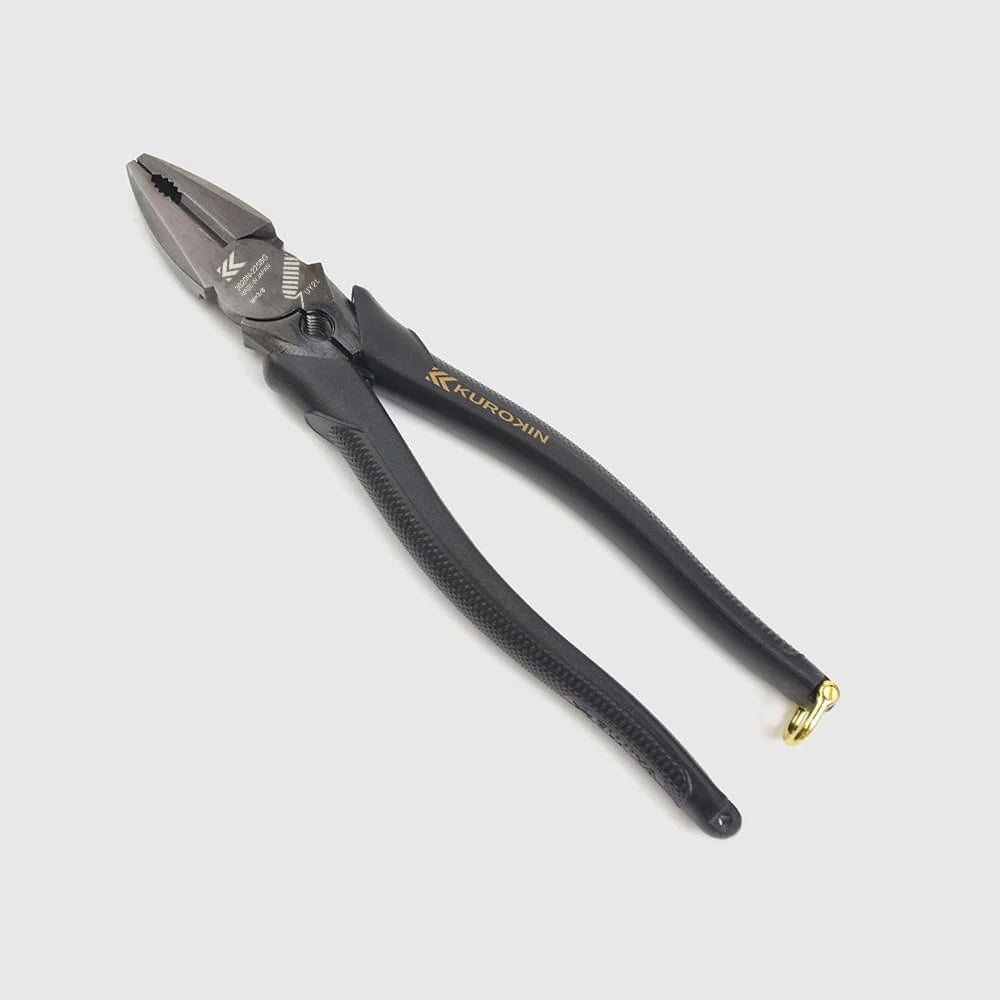

The Fujiya 3020N-225BG is a 9" high-leverage lineman's plier designed for electricians and installers who hang conduit, tray, and fixtures from 3/8" threaded rod. It uses the same eccentric high-leverage joint as the 3000N-225BG to reduce cutting effort, and adds a deburring and thread repair function at the base of the handles that cleans up burrs and damaged threads on freshly cut 3/8" rod, so nuts and fittings spin on without reaching for another tool.

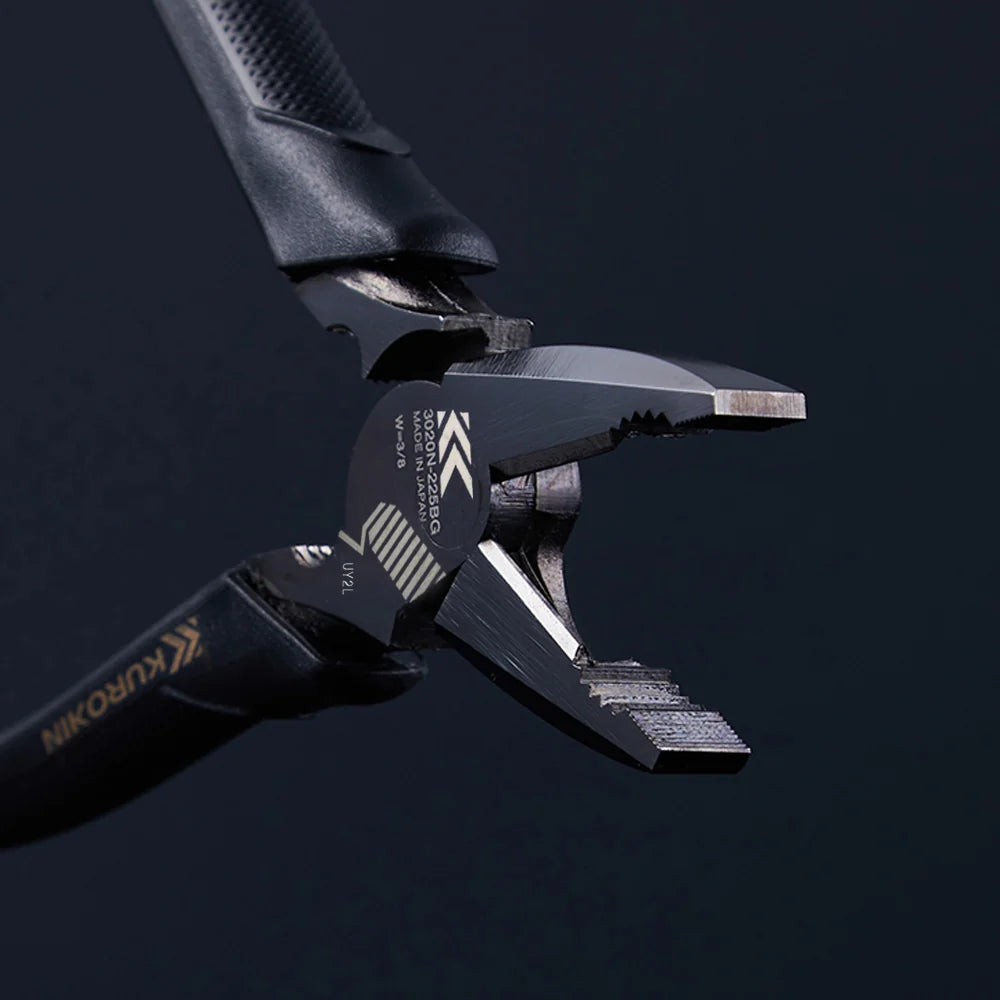

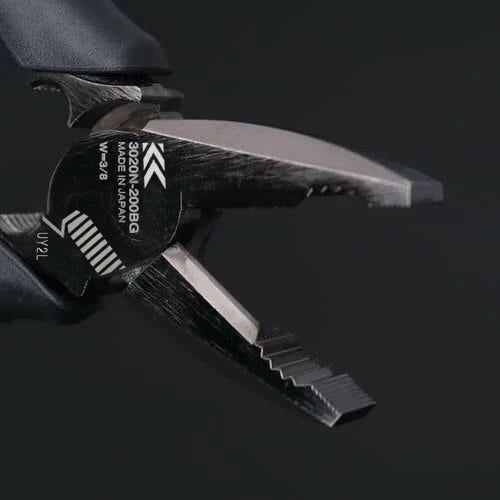

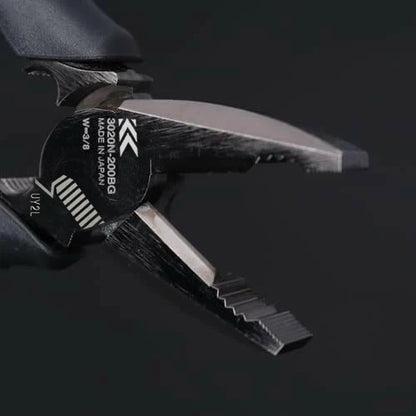

Hardened, precision-machined jaws deliver a strong, slip-resistant grip for pulling and twisting, and the cutter handles copper, steel, and piano wire along with 3-core electrical cable. Finished in the signature KUROKIN black and gold for corrosion resistance and durability, it also features a built-in tethering hole for safer elevated work. Made in Japan and hand-finished one at a time to modern Japanese quality and safety standards.
Need a crimper instead? See the 9" Fujiya 3000N-225BG.
✅ Deburring and thread repair function for 3/8" threaded rod
✅ Cuts copper, steel, piano wire, and NM-B cable
✅ High-leverage design reduces cutting effort
✅ Hardened jaws for a strong, slip-resistant grip
✅ KUROKIN black and gold protective finish enhances corrosion resistance
✅ Built-in shackle hole for tethering during elevated work
Features
- Reduces cutting effort with eccentric high-leverage joint

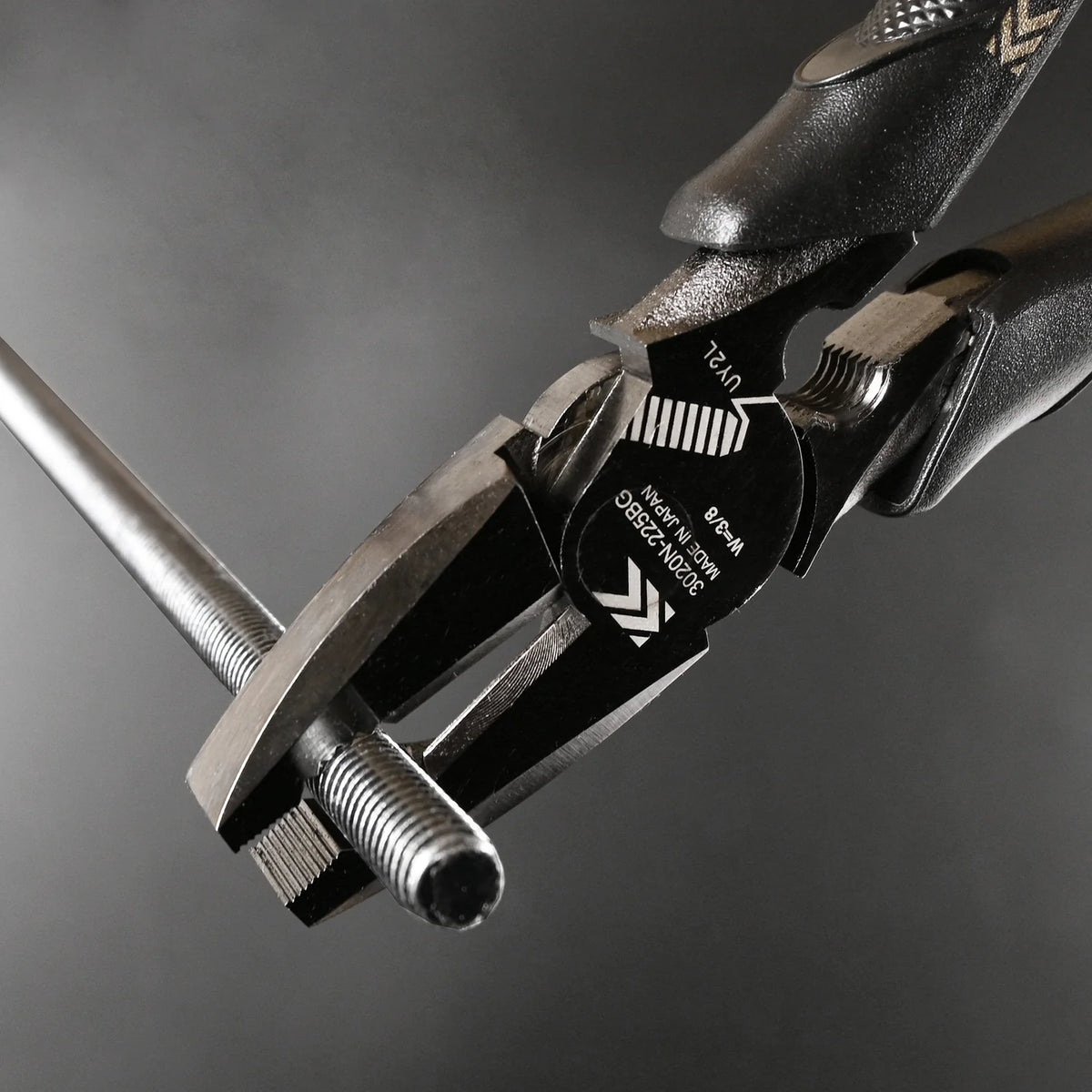

- Deburring and thread repair function at the handle base cleans burrs and restores threads on 3/8" threaded rod (hanger rod)

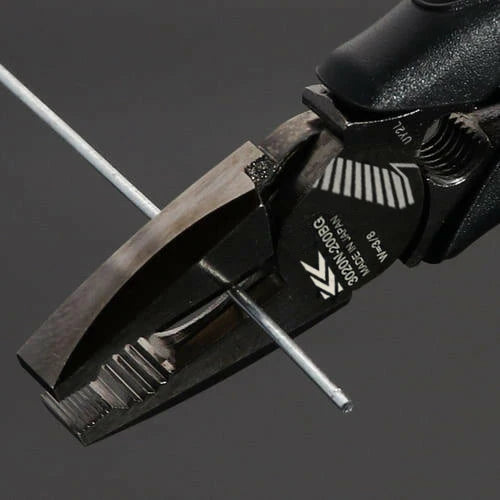

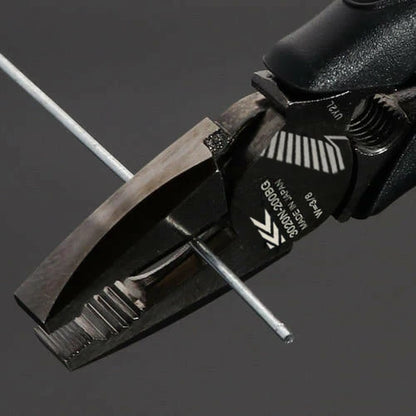

- Cutting edges rated for steel, copper, and piano wire

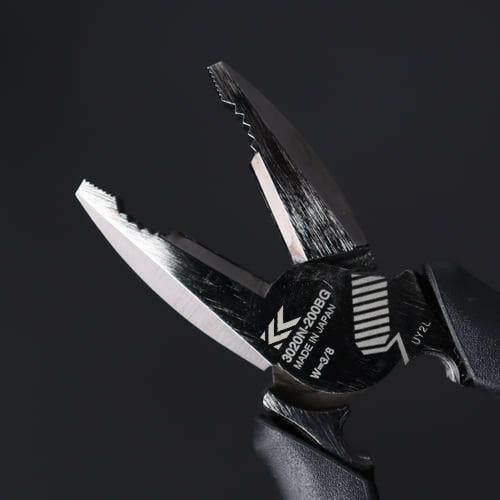

- Hardened jaws grip firmly for pulling and twisting
- Lightweight for its class: 9" capacity at about the weight of a size smaller
- KUROKIN black and gold finish resists rust and gives each tool a solid, premium feel
- Non-slip resin grips for comfort and control
- Built-in shackle hole for quick lanyard or tether setup
- Not insulated; see Product Safety below
- RoHS compliant and built to Japanese quality standards
- Made in Japan and hand-finished by Fujiya craftsmen (est. 1923) for exceptional precision, edge sharpness, and strict quality control
Details
| Specification |
Detail |
| Model |
3020N-225BG |
| Tool Type |
Lineman's Plier with Deburring and Thread Repair |
| Total Length |
225 mm (~9") |
| Weight |
340 g (12 oz) |
| Cutting – Steel Wire |
Ø3.6 mm |
| Cutting – Copper Wire |
Ø4.0 mm |
| Cutting – Hardened Wire |
Ø2.0 mm |

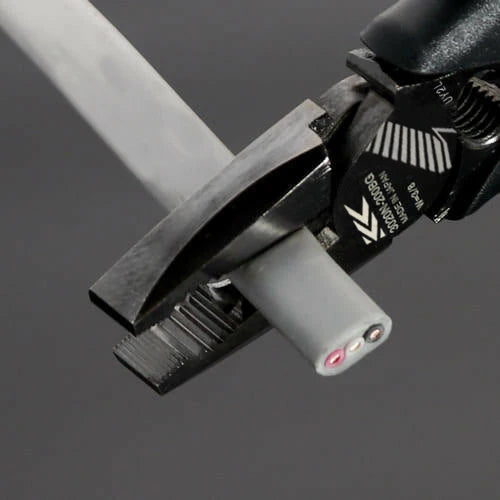

| Cutting – Electrical Cable |
Ø2.6 mm × 3-core (VVF / NM-B, up to 10 AWG) |
| Deburring and Thread Repair |
3/8" (W3/8) threaded rod |
| Crimping |
No |
| Grip Material |
Non-slip resin |
| Finish |
KUROKIN black and gold |
| Safety Tether Hole |
Yes (with shackle included) |
| Insulated |
No |
| JAN Code |
4952520030936 |
| Country of Origin |
Made in Japan |
Product Safety
- Always wear appropriate personal protective equipment (PPE), such as gloves and safety glasses, when using tools.
- Wear safety glasses when striking, cutting, or prying with any tool.
- Inspect each tool before use and do not operate if damaged.
- Use all tools only for their intended purpose and within their specified limits.
- Do not use on live electrical circuits unless the tool is certified to IEC 60900 / VDE 1000V and marked accordingly.
- Only tools carrying that certification are rated for work near energized conductors.
- A plastic handle, resin shaft cover, or internal insulating component is not electrical insulation and will not protect you from shock.
- Always disconnect power and verify the circuit is de-energized with a tester before working on electrical equipment.
- Store tools in a dry location and keep them out of reach of children.
