Overview

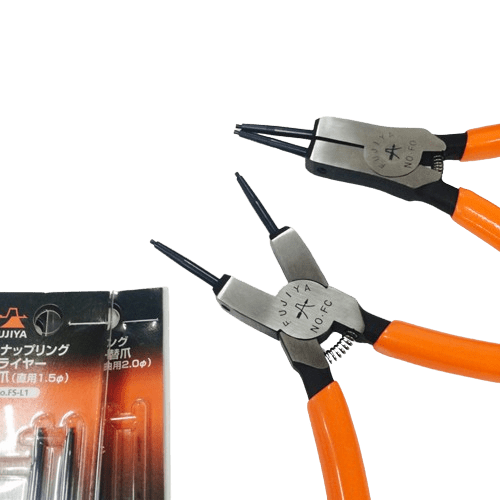

The Fujiya Snap Ring Pliers are straight-jaw pliers designed for installing and removing C-type (circlip-style) snap rings used in mechanical, automotive, and general service work. This listing includes two variants: external snap ring pliers [FOS-185], used for snap rings that install into a groove on the outside of a shaft, and internal snap ring pliers [FCS-185], used for snap rings that install into a groove inside a bore.
At 7.25" (185mm) overall length, both variants offer controlled handling in tight access areas. The external snap ring pliers [FOS-185] support snap ring diameters from 0.39" to 1.57" (10–40mm), while the internal snap ring pliers [FCS-185] support snap ring diameters from 0.47" to 2.56" (12–65mm), covering a wide range of common sizes. A jaw lock mechanism helps hold the snap ring securely once engaged, while reverse-tapered tips improve retention and control during installation or removal. Made in Japan and built to Japanese quality and safety standards.
✅ Supports external snap rings 0.39"–1.57" (10–40mm) or internal snap rings 0.47"–2.56" (12–65mm)
✅ Clear variant selection for external [FOS-185] or internal [FCS-185] snap rings
✅ Jaw lock helps hold the snap ring securely once engaged
✅ Reverse-tapered tips reduce slipping and improve control
✅ Replaceable tips extend tool service life
✅ Compact 7.25" size supports precision handling in tight spaces
Features
- Straight snap ring pliers for external and internal snap ring work
- External snap ring pliers [FOS-185] open tips when handles are squeezed
- Internal snap ring pliers [FCS-185] close tips when handles are squeezed
- Supports external snap rings from 0.39" to 1.57" (10 to 40mm)
- Supports internal snap rings from 0.47" to 2.56" (12 to 65mm)
- Jaw lock mechanism helps hold the snap ring securely once engaged
- Reverse-tapered tips improve snap ring retention
- Replaceable snap ring tips secured with a single screw
- Spring-loaded handles improve control and reduce hand fatigue
- RoHS compliant and built to Japanese quality standards
- Made in Japan and hand-finished by Fujiya craftsmen (est. 1923) for exceptional precision, edge sharpness, and strict quality control
Details
| Specification |
External Snap Rings |
Internal Snap Rings |
| Model |
FOS-185 |
FCS-185 |
| Tool Type |
Snap Ring Pliers |
Snap Ring Pliers |
| Application |
External snap rings on shafts |
Internal snap rings inside bores or housings |
| Ring Capacity |
0.39"–1.57" (10–40 mm) |
0.47"–2.56" (12–65 mm) |
| Operation |
Tips open when squeezed |
Tips close when squeezed |
| Length |
7.28" (185 mm) |
7.28" (185 mm) |
| Weight |
6.17 oz (175 g) |
6.17 oz (175 g) |
| Tip Diameter |
0.08" (2.0 mm) |
0.08" (2.0 mm) |
| Package Size (H × W × D) |
8.78" × 2.87" × 0.79" (223 × 73 × 20 mm) |
8.78" × 2.87" × 0.79" (223 × 73 × 20 mm) |
| JAN Code |
4952520040027 |
4952520040034 |
| Country of Origin |
Made in Japan |
Made in Japan |
Product Safety
- Always wear appropriate personal protective equipment (PPE), such as gloves and safety glasses, when using tools.
- Inspect each tool before use and do not operate if damaged.
- Use all tools only for their intended purpose and within their specified limits.
- Do not use on live electrical circuits unless the tool is clearly marked as insulated for such applications.
- Store tools in a dry location and keep them out of reach of children.
