Overview
The Fujiya PP323C-165-BG is a 6.5" low-voltage wire stripper from Fujiya's KUROKIN series, designed for installers working on intercom, fire alarm, security, and signal wiring. Instead of a long row of sizes, it has three solid-wire holes, Ø0.65, 0.9, and 1.2 mm, matched to the conductor sizes Fujiya targets for low-voltage cable, so the right hole is easy to find and use.
Precision-ground stripping holes remove insulation accurately on the first pass, and Fujiya designs the C type to strip paired conductors together to save time on multi-conductor runs. A spring-loaded return keeps repetitive stripping smooth, and a built-in cutter at the base of the blades trims soft copper. The KUROKIN edition adds a black and gold finish with soft molded resin grips that stay comfortable during long sessions. RoHS compliant and manufactured under Fujiya Japan's quality control standards.
Need standard AWG sizes? See the AWG 10–20 Fujiya PP323A-165-BG.
✅ Three solid-wire holes: Ø0.65, 0.9, and 1.2 mm (about 22, 19, and 17 AWG)
✅ Built for intercom, fire alarm, security, and signal wiring
✅ Precision-ground stripping holes protect conductors
✅ Spring-loaded return for smooth, repetitive stripping
✅ Built-in cutter for soft copper
Features
- Low-voltage wire stripper for intercom, fire alarm, security, and signal work
- Solid wire stripping holes: Ø0.65 / 0.9 / 1.2 mm (approx. 22 / 19 / 17 AWG)

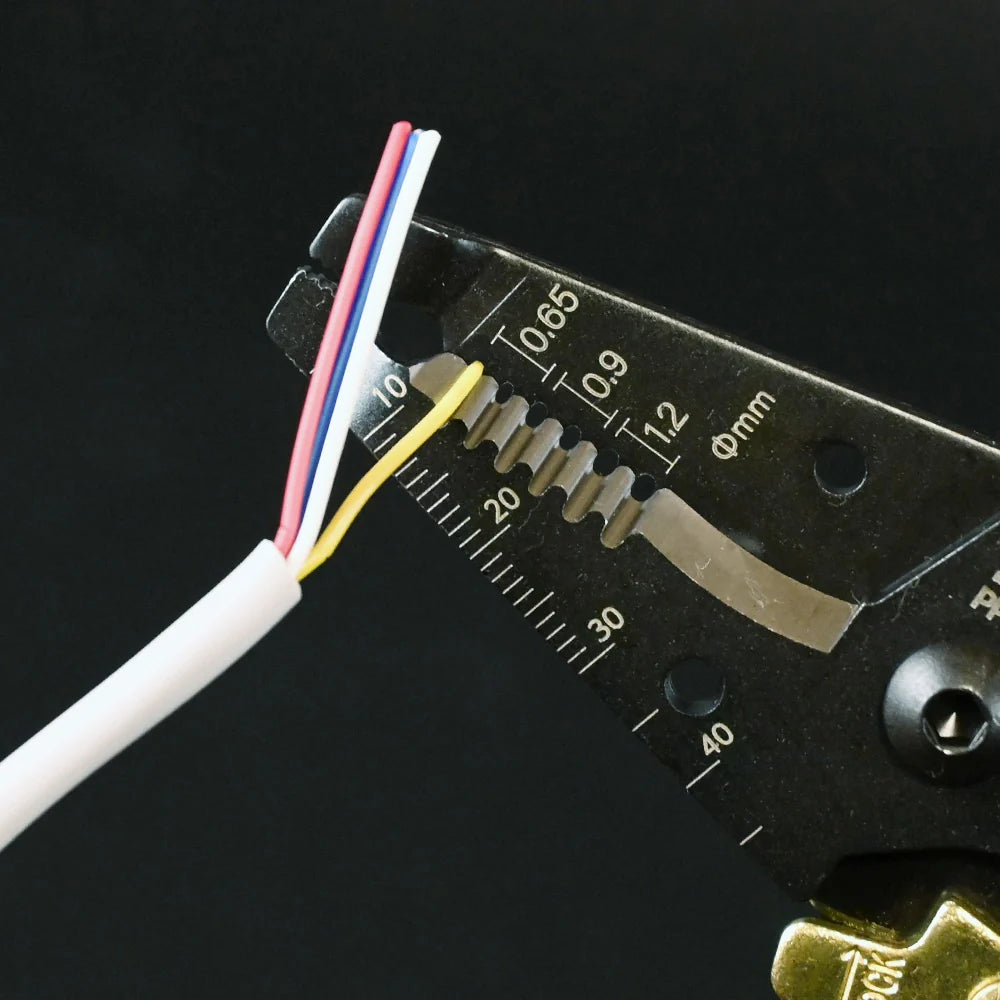

- Designed to strip paired conductors together on multi-conductor cable
- Precision-ground blades deliver clean, core-safe cuts
- Built-in return spring ensures smooth, repetitive stripping
- Cutter at the blade base for soft copper wire
- Soft molded resin grips for fatigue-free operation
- KUROKIN black and gold finish resists rust and gives each tool a solid, premium feel
- Not insulated; see Product Safety below
- RoHS compliant and built to Japanese quality standards
- Made in Taiwan under Fujiya Japan (est. 1923) quality control standards for precision, durability, and reliability
Details
| Specification |
Detail |
| Model |
PP323C-165-BG |
| Tool Type |
Low-Voltage Wire Stripper (Type C) |
| Total Length |
167 mm (6.5") |
| Weight |
120 g (4.23 oz) |
| Wire Stripping – Solid |
Ø0.65 / 0.9 / 1.2 mm (approx. 22 / 19 / 17 AWG) |
| Cutter |
Soft copper wire |
| Blade Material |
Special steel |
| Grip Material |
Soft molded resin |
| Finish |
KUROKIN black and gold |
| Spring Mechanism |
Yes – spring-loaded |
| Insulated |
No |
| JAN Code |
4952520083338 |
| Country of Origin |
Made in Taiwan by Fujiya Japan |
Product Safety
- Always wear appropriate personal protective equipment (PPE), such as gloves and safety glasses, when using tools.
- Wear safety glasses when striking, cutting, or prying with any tool.
- Inspect each tool before use and do not operate if damaged.
- Use all tools only for their intended purpose and within their specified limits.
- Do not use on live electrical circuits unless the tool is certified to IEC 60900 / VDE 1000V and marked accordingly.
- Only tools carrying that certification are rated for work near energized conductors.
- A plastic handle, resin shaft cover, or internal insulating component is not electrical insulation and will not protect you from shock.
- Always disconnect power and verify the circuit is de-energized with a tester before working on electrical equipment.
- Store tools in a dry location and keep them out of reach of children.
