Overview

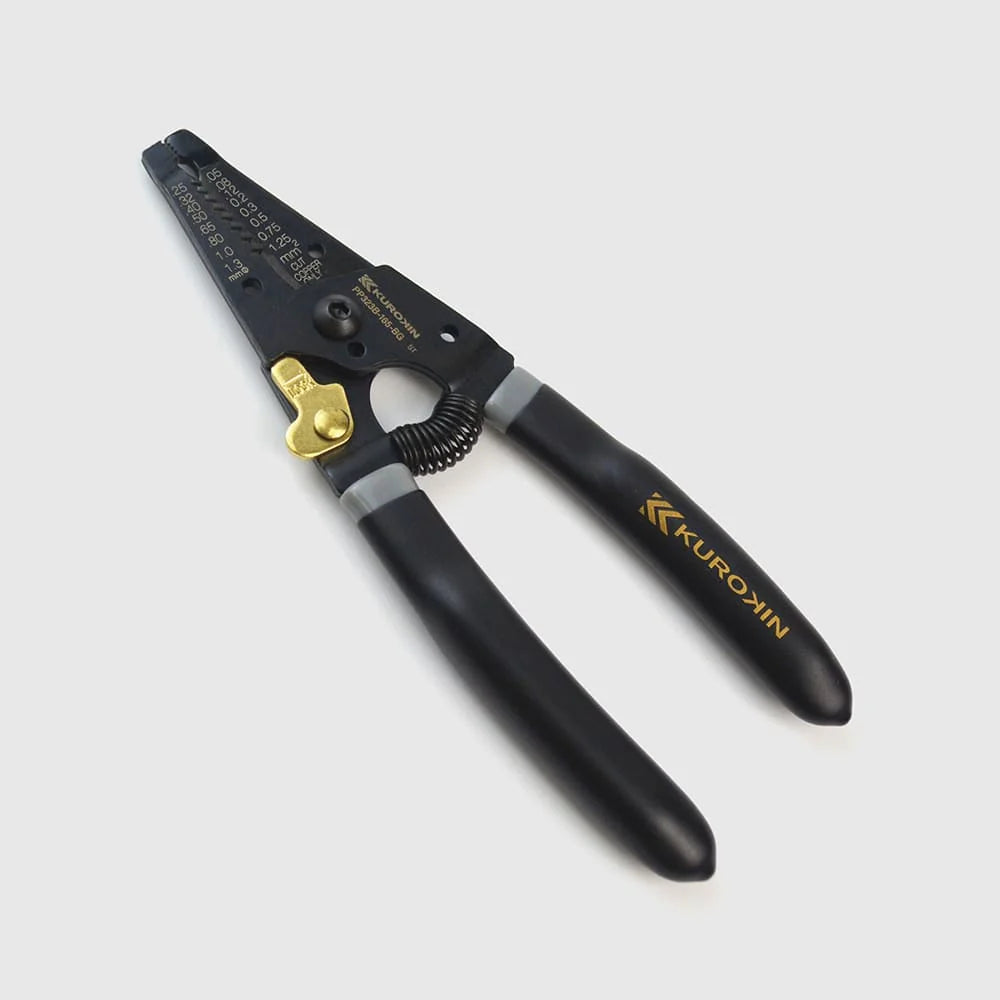

The Fujiya PP323B-165-BG is a 6.5" precision wire stripper from Fujiya's KUROKIN series, designed for professionals working with fine-gauge wire in telecom, AV, PC, and electronics work. It covers the smaller end of the range, from solid AWG 16 down to AWG 30 and stranded AWG 18 down to AWG 32, so thin conductors can be stripped cleanly without nicking.
Precision-ground stripping holes remove insulation accurately on the first pass, a spring-loaded return keeps repetitive stripping smooth, and a built-in cutter at the base of the blades trims soft copper. The KUROKIN edition adds a black and gold finish with soft molded resin grips that stay comfortable during long sessions. Gauge markings in both AWG and metric are printed on the tool. RoHS compliant and manufactured under Fujiya Japan's quality control standards.
Need larger gauges? See the AWG 10–20 Fujiya PP323A-165-BG.
✅ Strips solid wire from AWG 16–30 (0.25–1.3 mm)
✅ Strips stranded wire from AWG 18–32 (0.05–1.25 mm²)
✅ Precision-ground stripping holes protect fine conductors
✅ Spring-loaded return for smooth, repetitive stripping
✅ Built-in cutter for soft copper
Features
- Compatible with solid wire: AWG 16 / 18 / 20 / 22 / 24 / 26 / 28 / 30
- Compatible with stranded wire: AWG 18 / 20 / 22 / 24 / 26 / 28 / 30 / 32
- Metric sizing, solid: Ø0.25 / 0.32 / 0.4 / 0.5 / 0.65 / 0.8 / 1.0 / 1.3 mm
- Metric sizing, stranded: 0.05 / 0.08 / 0.12 / 0.2 / 0.3 / 0.5 / 0.75 / 1.25 mm²
- Precision-ground blades deliver clean, core-safe cuts
- Dual gauge markings (AWG + metric) on the tool face
- Built-in return spring ensures smooth, repetitive stripping
- Cutter at the blade base for soft copper wire
- Soft molded resin grips for fatigue-free operation
- KUROKIN black and gold finish resists rust and gives each tool a solid, premium feel
- Ideal for telecom, AV, PC wiring, and precision electronics
- Not insulated; see Product Safety below
- RoHS compliant and built to Japanese quality standards
- Made in Taiwan under Fujiya Japan (est. 1923) quality control standards for precision, durability, and reliability
Details
| Specification |
Detail |
| Model |
PP323B-165-BG |
| Tool Type |
Wire Stripper (Type B) |
| Total Length |
167 mm (6.5") |
| Weight |
120 g (4.23 oz) |
| Wire Stripping – AWG |
Solid: 16 / 18 / 20 / 22 / 24 / 26 / 28 / 30; Stranded: 18 / 20 / 22 / 24 / 26 / 28 / 30 / 32 |
| Wire Stripping – Metric |
Solid: Ø0.25 / 0.32 / 0.4 / 0.5 / 0.65 / 0.8 / 1.0 / 1.3 mm; Stranded: 0.05 / 0.08 / 0.12 / 0.2 / 0.3 / 0.5 / 0.75 / 1.25 mm² |
| Cutter |
Soft copper wire |
| Blade Material |
Special steel |
| Grip Material |
Soft molded resin |
| Finish |
KUROKIN black and gold |
| Spring Mechanism |
Yes – spring-loaded |
| Insulated |
No |
| JAN Code |
4952520083468 |
| Country of Origin |
Made in Taiwan by Fujiya Japan |
Product Safety
- Always wear appropriate personal protective equipment (PPE), such as gloves and safety glasses, when using tools.
- Wear safety glasses when striking, cutting, or prying with any tool.
- Inspect each tool before use and do not operate if damaged.
- Use all tools only for their intended purpose and within their specified limits.
- Do not use on live electrical circuits unless the tool is certified to IEC 60900 / VDE 1000V and marked accordingly.
- Only tools carrying that certification are rated for work near energized conductors.
- A plastic handle, resin shaft cover, or internal insulating component is not electrical insulation and will not protect you from shock.
- Always disconnect power and verify the circuit is de-energized with a tester before working on electrical equipment.
- Store tools in a dry location and keep them out of reach of children.
