Overview

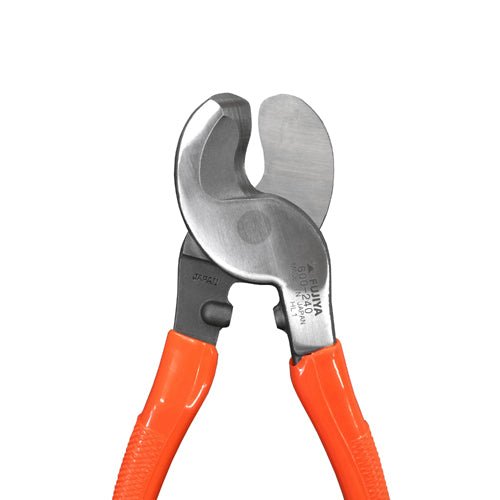

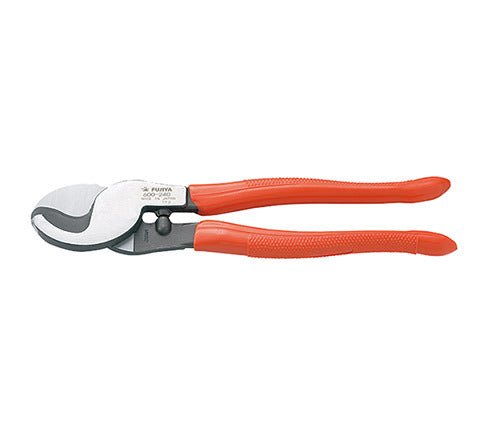

The Fujiya 600-240 is a 9.5" high-leverage cable cutter built for electricians and installers cutting thick electrical cable where clean, controlled cuts matter. It is designed for large single-conductor cable and round, jacketed multi-conductor cable used in feeders and equipment installations.
Cutting capacity is up to 60 mm² class electrical cable. For reference, it supports single-conductor cable up to Ø 0.54" (13.6mm) and multi-conductor jacketed cable up to Ø 1.46" (37.0 mm) for 2-core or Ø 1.57" (39.8mm) for 3-core. The curved, parrot-beak jaw profile helps stabilize cable during the cut, improving control on thicker insulation and larger multi-core builds. Heat-treated cutting edges improves sharpness and edge life in repeated cable work. This tool is designed for electrical cable use and is not intended for hardened steel, ACSR, or wire rope. Made in Japan and built to modern Japanese quality and safety standards.
✅ Long 9.5" (240 mm) handles improve leverage on thick cable
✅ Supports cable up to 60 mm²-class in common electrical applications
✅ Cuts single-conductor cable up to Ø 0.54" (13.6 mm)
✅ Cuts jacketed multi-conductor cable up to Ø 1.57" (39.8 mm)
✅ Parrot-beak jaw profile improves control during the cut
Features
- Cable cutter designed for electrical installation work
- Designed for large single-conductor cable and jacketed multi-conductor cable
- Supports IV wire (JP) 60 mm² (Ø 0.54" / 13.6 mm reference)
- Supports VCT wire (JP) 60 mm² x 2-core (Ø 1.46" / 37.0 mm OD)
- Supports VCT wire (JP) 60 mm² x 3-core (Ø 1.57" / 39.8 mm OD)
- Curved, parrot-beak jaw profile stabilizes cable during cutting
- Heat-treated cutting edges improve sharpness and durability
- RoHS compliant and built to Japanese quality standards
- Made in Japan and hand-finished by Fujiya craftsmen (est. 1923) for clean cutting performance, durability, and strict quality control
Details
| Specification |
Detail |
| Model |
600-240 |
| Tool Type |
Cable Cutter |
| Supported Material (NA) |
Thick electrical cable, jacketed multi-conductor cable |
| Supported Material (JP) |
IV wire, VCT wire |
| Capacities |
IV 60 mm² (Ø 0.54" / 13.6 mm ref); VCT 60 mm² x 2-core (Ø 1.46" / 37.0 mm OD); VCT 60 mm² x 3-core (Ø 1.57" / 39.8 mm OD) |
| Operation |
Manual, two-hand operation |
| Length |
9.5 in (240 mm) |
| Weight |
16.4 oz (465 g) |
| JAN Code |
4952520060100 |
| Country of Origin |
Made in Japan |
Product Safety
- Always wear appropriate personal protective equipment (PPE), such as gloves and safety glasses, when using tools.
- Inspect each tool before use and do not operate if damaged.
- Use all tools only for their intended purpose and within their specified limits.
- Do not use on live electrical circuits unless the tool is clearly marked as insulated for such applications.
- Store tools in a dry location and keep them out of reach of children.
